XD6132

Delay capacitor adjustable voltage detectors

XD6132 Features

* Operating Ambient Temperature : -40℃ ~ 125℃ Operating voltage range : 1.6V ~ 6.0V Detect voltage(Standard) : 1.0V Detect voltage range(Semi-custom) : 0.8V ~ 2.0V Detect voltage accuracy : ±18mV(VDF<1.5V) (Ta=25℃) : ±1.2%(1.5V≦VDF≦2.0V) Detect voltage accuracy : ±36mV(VDF<1.5V) (Ta=-40~1

XD6132 General Description

The XD6132 series are ultra-small delay capacitor adjustable type voltage detectors that have high accuracy and sense pin isolation. High accuracy and a low supply current are achieved by means of a CMOS process, a highly accurate reference power supply, and laser trimming technology. The sense pin .

XD6132 Datasheet (748.71 KB)

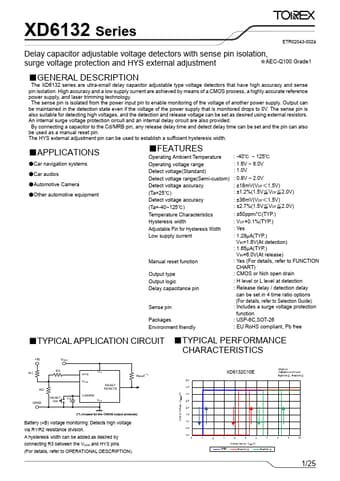

Preview of XD6132 PDF

Datasheet Details

Part number:

XD6132

Manufacturer:

Torex

File Size:

748.71 KB

Description:

Delay capacitor adjustable voltage detectors.
XD6132 Series ETR02043-002a Delay capacitor adjustable voltage detectors with sense pin isolation, surge voltage protection and HYS external adjust.
