015AZ2.7, 015AZ2.0 Datasheet - Toshiba Semiconductor

015AZ2.7 Silicon Diode

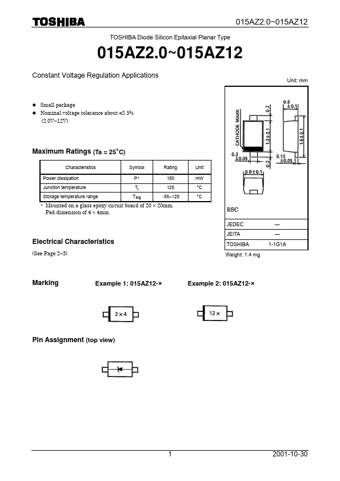

015AZ2.0~015AZ12 TOSHIBA Diode Silicon Epitaxial Planar Type 015AZ2.0~015AZ12 Constant Voltage Regulation Applications Unit: mm l Small package l Nominal voltage tolerance about ±2.5% (2.0V~12V) Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Power dissipation P 150 Junction temperature Tj 125 Storage temperature range Tstg -55~125 Mounted on a glass epoxy circuit board of 20 × 20mm, Pad dimension of 4 × 4mm. Unit mW °C °C Electrical Characteristics (See Page.

015AZ2.0-ToshibaSemiconductor.pdf

This datasheet PDF includes multiple part numbers: 015AZ2.7, 015AZ2.0. Please refer to the document for exact specifications by model.
015AZ2.7 Datasheet Preview Page 2 015AZ2.7 Datasheet Preview Page 3

Datasheet Details

Part number:

015AZ2.7, 015AZ2.0

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

160.49 KB

Description:

Silicon diode.

Note:

This datasheet PDF includes multiple part numbers: 015AZ2.7, 015AZ2.0.
Please refer to the document for exact specifications by model.
