1SS200 - Diode

📥 Download Datasheet

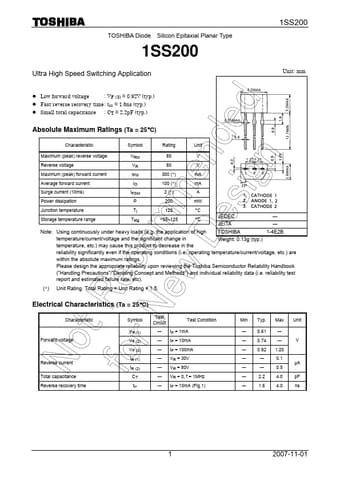

Datasheet preview – 1SS200

Datasheet Details

Part number 1SS200
Manufacturer Toshiba Semiconductor
File Size 173.73 KB
Description Diode
Datasheet download datasheet 1SS200 Datasheet
Additional preview pages of the 1SS200 datasheet.

📁 Similar Datasheet

  • 1SS201 - SUPER HIGH SPEED SWITCHING DIODE (XIN SEMICONDUCTOR)
  • 1SS220 - (1SS220 / 1SS221) SILICON SWITCHING DIODES (NEC)
  • 1SS226 - SILICON EPITAXIAL PLANAR DIODE (EIC)
  • 1SS226 - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)
  • 1SS226 - SILICON EPITAXIAL PLANAR DIODE (SEMTECH)
  • 1SS226 - Switching Diodes (LGE)
  • 1SS226 - SWITCHING DIODE (JCET)
  • 1SS226 - 150mW SWITCHING DIODE (MCC)
  • 1SS226 - DIODE (WEJ)
  • 1SS226 - Surface Mount Switching Diodes (WEITRON)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text
TOSHIBA Diode Silicon Epitaxial Planar Type 1SS200 Ultra High Speed Switching Application 1SS200 Unit: mm z Low forward voltage : VF (3) = 0.92V (typ.) z Fast reverse recovery time : trr = 1.6ns (typ.) z Small total capacitance : CT = 2.2pF (typ.) Absolute Maximum Ratings (Ta = 25°C) Characteristic Symbol Rating Unit Maximum (peak) reverse voltage VRM 85 V Reverse voltage VR 80 V Maximum (peak) forward current IFM 300 (*) mA Average forward current Surge current (10ms) Power dissipation IO IFSM P 100 (*) 2 (*) 200 mA A mW Junction temperature Storage temperature range Tj 125 °C Tstg −55~125 °C JEDEC JEITA ― ― Note: Using continuously under heavy loads (e.g.
