2SA1360 - TRANSISTOR

2SA1360 Description

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) 2SA1360 Audio Frequency Amplifier Applications 2SA1360 Unit: mm * Complementary .

2SA1360 Features

* or details as to environmental matters such as the RoHS compatibility of Product. Please use Product in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. TOSHIBA assumes no liability f

2SA1360 Applications

* 2SA1360 Unit: mm
* Complementary to 2SC3423
* Small collector output capacitance: Cob = 2.5 pF (typ. )
* High transition frequency: fT = 200 MHz (typ. ) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO
* 150 V

📥 Download Datasheet

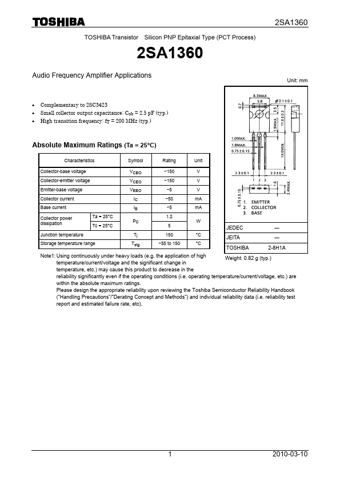

Preview of 2SA1360 PDF
datasheet Preview Page 2 datasheet Preview Page 3
