2SC3862 Datasheet - Toshiba Semiconductor

2SC3862 Silicon NPN Transistor

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC3862 TV Tuner, UHF Mixer Applications VHF~UHF Band RF Amplifier Applications 2SC3862 Unit: mm Exchange of emitter for base in 2SC3120 Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 30 15 3 50 25 150 125 -55~125 U.

2SC3862_ToshibaSemiconductor.pdf

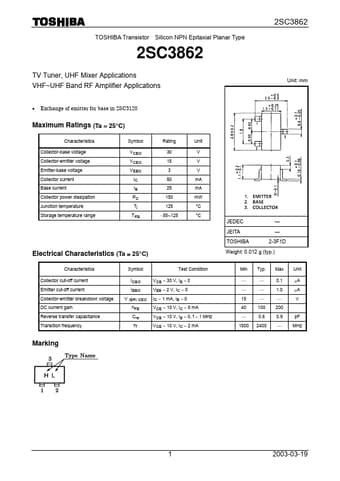

Preview of 2SC3862 PDF
2SC3862 Datasheet Preview Page 2 2SC3862 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC3862

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

165.69 KB

Description:

Silicon npn transistor.
