2SC3868 - NPN Transistor

2SC3868 Description

isc Silicon NPN Power Transistor .
Collector-Base Breakdown Voltage- : V(BR)CBO= 500V(Min. Low Collector Saturation Voltage. Wide Area of Safe Operation. High Speed S.

2SC3868 Applications

* Designed for high speed switching applications. ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 500 V VCES Collector-Emitter Voltage 500 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Con

📥 Download Datasheet

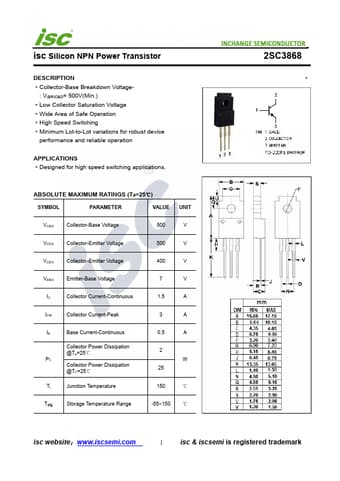

Preview of 2SC3868 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC3868
Manufacturer
INCHANGE
File Size
207.99 KB
Datasheet
2SC3868-INCHANGE.pdf
Description
NPN Transistor
