2SC3830 - NPN Transistor

2SC3830 Description

isc Silicon NPN Power Transistor .
Low Collector Saturation Voltage : VCE(sat)= 0. Collector-Emitter Breakdown Voltage- : V(BR)CEO= 500V (Min). High Switchin.

2SC3830 Applications

* Designed for switching regulator and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 600 V VCEO Collector-Emitter Voltage 500 V VEBO Emitter-Base Voltage 10 V IC Collector Current-Continuous 6 A ICM Co

📥 Download Datasheet

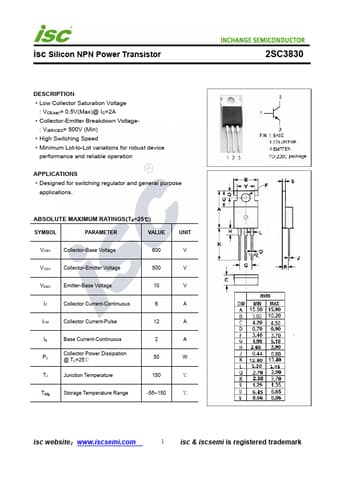

Preview of 2SC3830 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC3830
Manufacturer
INCHANGE
File Size
205.23 KB
Datasheet
2SC3830-INCHANGE.pdf
Description
NPN Transistor
