2SC3832 Datasheet - Sanken electric

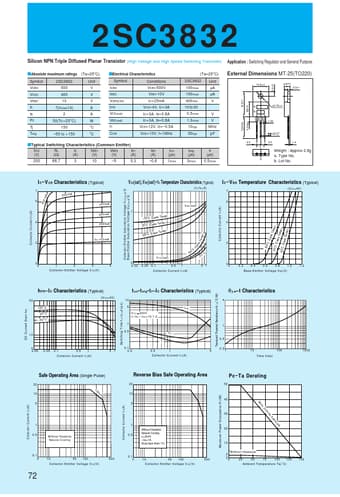

2SC3832 Silicon NPN Transistor

2SC3832 Silicon NPN Triple Diffused Planar Transistor (High Voltage and High Speed Switching Transistor) sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SC3832 500 400 10 7(Pulse14) 2 50(Tc=25°C) 150 55 to +150 Unit V V V A A W °C °C Application : Switching Regulator and General Purpose sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) VBE(sat) fT COB Conditions VCB=500V VEB=10V IC=25mA VCE=4V, IC=3A IC=3A, IB=0.6A IC=3A, IB=0.6A VCE=12V, I.

2SC3832_Sankenelectric.pdf
