2SC3838 - High-Frequency Amplifier Transistor

2SC3838 Description

Transistors 2SC5662 / 2SC4726 / 2SC4083 / 2SC3838K / 2SC4043S High-Frequency Amplifier Transistor (11V, 50mA, 3.2GHz) 2SC5662 / 2SC4726 / 2SC4083 / .

2SC3838 Features

* 1) High transition frequency. (Typ. fT= 1.5GHz) 2) Small rbb’⋅Cc and high gain. (Typ. 4ps) 3) Small NF. !External dimensions (Units : mm) 2SC5662 0.2 1.2 0.32 (3) (1) 1.2 0.8 (2) 0.2 0.4 0.4 0.8 0.5 0.22 0.15Max. ! Absolute maximum ratings (Ta=25°C) Parameter Collector-base voltage Collector-e

📥 Download Datasheet

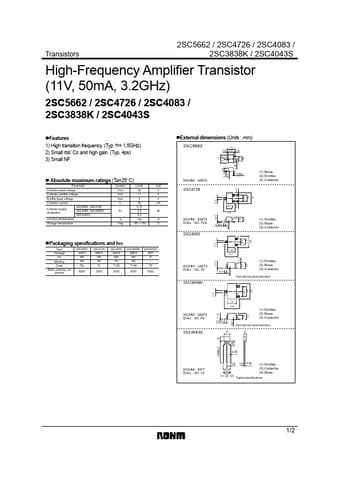

Preview of 2SC3838 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC3838
Manufacturer
ROHM ↗
File Size
64.05 KB
Datasheet
2SC3838_Rohm.pdf
Description
High-Frequency Amplifier Transistor
