2SC3833 Silicon NPN Transistor

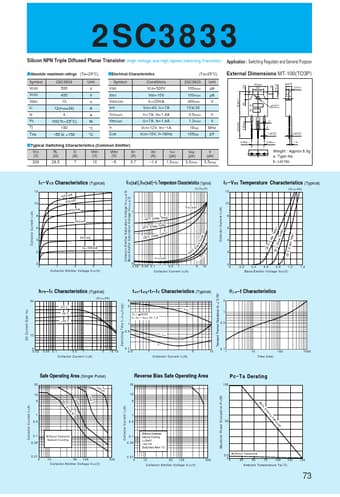

2SC3833 Silicon NPN Triple Diffused Planar Transistor (High Voltage and High Speed Switching Transistor) sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SC3833 500 400 10 12(Pulse24) 4 100(Tc=25°C) 150 55 to +150 Unit V V V A A W °C °C Application : Switching Regulator and General Purpose sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) VBE(sat) fT COB Conditions VCB=500V VEB=10V IC=25mA VCE=4V, IC=7A IC=7A, IB=1.4A IC=7A, IB=1.4A VCE=12V,.
