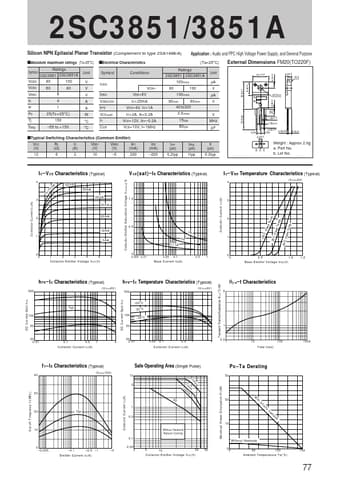

2SC3851/3851A Silicon NPN Epitaxial Planar Transistor (Complement to type 2SA1488/A) Application : Audio and PPC High Voltage Power Supply, and General Purpose sAbsolute maximum ratings (Ta=25°C) Ratings Symbol 2SC3851 2SC3851A Unit VCBO 80 100 V VCEO 60 80 V VEBO 6 V IC 4 A IB 1 A PC 25(Tc=25°C) W Tj 150 °C Tstg –55 to +150 °C sElectrical Characteristics Symbol Conditions ICBO IEBO V(BR)CEO hFE VCE(sat) fT COB VCB= VEB=6V IC=25mA VCE=4V, IC=1A IC=2A, IB=0.2A VCE=12V, IE=–0.2A VCB=10V, f=1MHz sTypical Switching Characteristics (Common Emitter) VCC RL IC VBB1 VBB2 IB1 (V) (Ω) (A) (V) (V) (mA) 12 6 2 10 –5 200 IB2 (mA) –200 (Ta=25°C) Ratings 2SC3851 2SC3851A Unit 100max µA 80 100 V 100max µA 60min 80min V 40 to320 0.
