2SC3856-P - Silicon NPN Transistor

Datasheet Summary

Description

High Collector-Emitter Breakdown Voltage- : V(BR)CEO=180V(Min) Good Linearity of hFE APPLICATIONS Designed for audio and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 200 V VCEO Collector-Emitter Voltage

📥 Download Datasheet

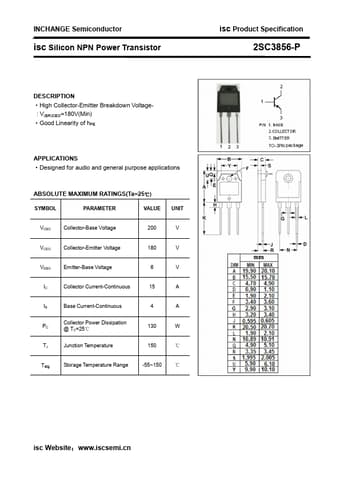

Datasheet preview – 2SC3856-P

Datasheet Details

Part number 2SC3856-P
Manufacturer Inchange Semiconductor
File Size 581.72 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC3856-P Datasheet
