2SC3853 - Silicon NPN transistor

Datasheet Summary

Description

TO-220F NPN 。Silicon NPN transistor in a TO-220F Plastic Package.

Features

  • ，。 Low Saturation Voltage, Excellent DC current characteristics. /.

📥 Download Datasheet

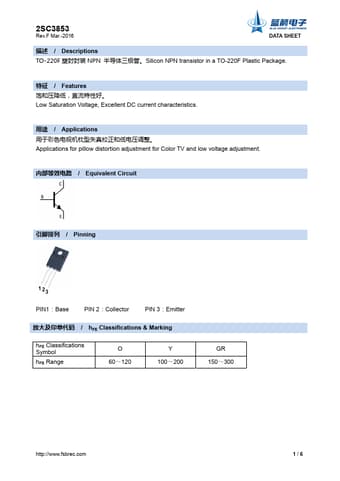

Datasheet preview – 2SC3853

Datasheet Details

Part number 2SC3853
Manufacturer BLUE ROCKET ELECTRONICS
File Size 965.67 KB
Description Silicon NPN transistor
Datasheet download datasheet 2SC3853 Datasheet
Additional preview pages of the 2SC3853 datasheet.

📁 Similar Datasheet

  • 2SC3853 - Silicon NPN Transistor (Sanken Electric)
  • 2SC3853 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3853 - NPN Transistor (INCHANGE)
  • 2SC3850 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3850 - NPN Transistor (INCHANGE)
  • 2SC3851 - Silicon NPN Transistor (Sanken electric)
  • 2SC3851 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3851 - NPN Transistor (INCHANGE)
  • 2SC3851A - Silicon NPN Transistor (Sanken electric)
  • 2SC3851A - SILICON POWER TRANSISTOR (SavantIC)
Other Datasheets by BLUE ROCKET ELECTRONICS

Full PDF Text Transcription

Click to expand full text
2SC3853 Rev.F Mar.-2016 DATA SHEET / Descriptions TO-220F NPN 。Silicon NPN transistor in a TO-220F Plastic Package.  / Features ，。 Low Saturation Voltage, Excellent DC current characteristics. / Applications 。 Applications for pillow distortion adjustment for Color TV and low voltage adjustment. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range O 60～120 Y 100～200 GR 150～300 http://www.fsbrec.com 1/6 2SC3853 Rev.F Mar.
