2SC3834 - Silicon NPN transistor

2SC3834 Description

2SC3834 Rev.F Mar.-2016 DATA SHEET / .
TO-220 NPN 。Silicon NPN transistor in a TO-220 Plastic Package.

2SC3834 Applications

* ，-。 Humidifier, DC-DC converter, and general purpose. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking 。See Marking Instructions. http://www. fsbrec. com 1/7 2SC3834 Rev. F Mar. -2016 / Absolute Maximum Ratings(Ta=25℃) Parameter

📥 Download Datasheet

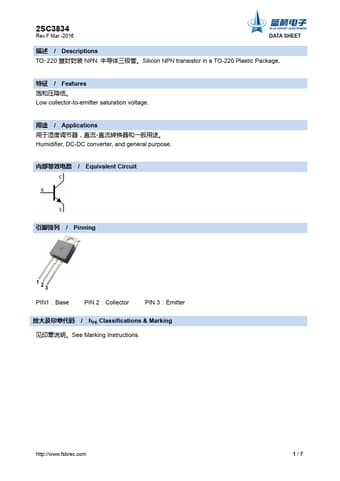

Preview of 2SC3834 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC3834
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
914.98 KB
Datasheet
2SC3834-BLUEROCKETELECTRONICS.pdf
Description
Silicon NPN transistor
