2SC3807

Silicon NPN transistor

2SC3807 Features

* IC ,hFE ,VCE(sat),VEBO 。 Large current capacity, high DC current gain, Low collector-to-emitter saturation voltage High VEBO. / Applications 。 low frequency general-purpose amplifiers, drivers. / Equivalent Circuit / Pinning 12 3 PIN1:Emitter PIN 2:Collector PIN 3:Base / hFE Classific

2SC3807 Datasheet (425.73 KB)

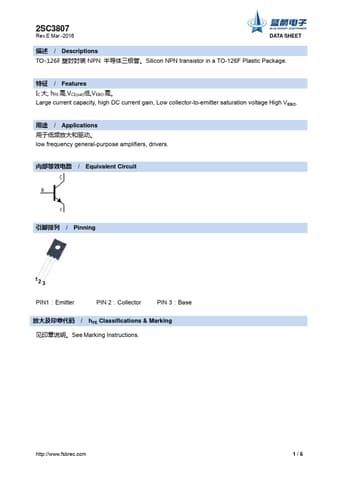

Preview of 2SC3807 PDF

Datasheet Details

Part number:

2SC3807

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

425.73 KB

Description:

Silicon npn transistor.
