2SC3809 - NPN Silicon Transistor

2SC3809 Description

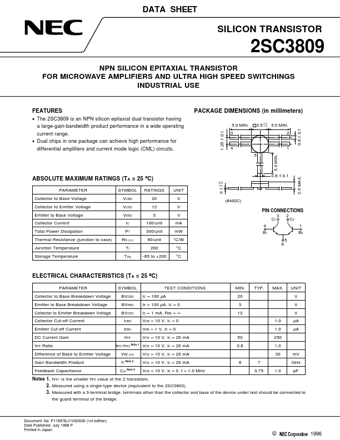

DATA SHEET SILICON TRANSISTOR 2SC3809 NPN SILICON EPITAXIAL TRANSISTOR FOR MICROWAVE AMPLIFIERS AND ULTRA HIGH SPEED SWITCHINGS INDUSTRIAL USE FEAT.

2SC3809 Features

* The 2SC3809 is an NPN silicon epitaxial dual transistor having a large-gain-bandwidth product performance in a wide operating PACKAGE DIMENSIONS (in millimeters) 5.0 MIN. 1.25 ± 0.1 5.0 MIN. 3.5 +0.3 -0.2 2 0.6 ± 0.1 current range.
* Dual chips in one package can achieve high pe

2SC3809 Applications

* of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a particular application. Standard: Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic
