2SC3807C - NPN Epitaxial Planar Silicon Transistor

Datasheet Summary

Features

  • Large current capacity (IC=2A). Adoption of MBIT process. High DC current gain (hFE=1000 to 2000). Low collector-to-emitter saturation voltage (VCE(sat)≤0.5V). High VEBO (VEBO≥17V). Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VE.

📥 Download Datasheet

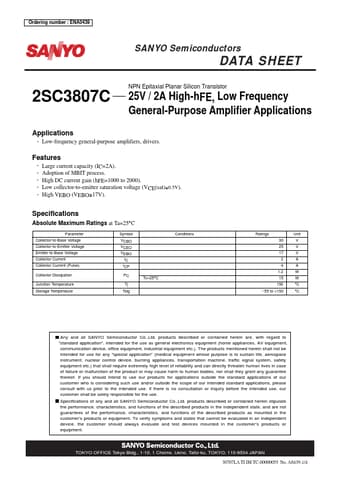

Datasheet preview – 2SC3807C

Datasheet Details

Part number 2SC3807C
Manufacturer Sanyo Semicon Device
File Size 72.45 KB
Description NPN Epitaxial Planar Silicon Transistor
Datasheet download datasheet 2SC3807C Datasheet
