2SC3807MP - NPN Epitaxial Planar Silicon Transistor

Datasheet Summary

Features

  • Large current capacity (IC=2A). Adoption of MBIT process. High DC current gain (hFE=1000 to 2000). Low collector-to-emitter saturation voltage (VCE(sat)≤0.5V). High VEBO(VEBO≥15V). Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEB.

📥 Download Datasheet

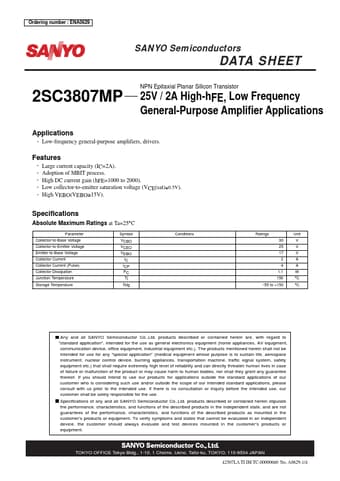

Datasheet preview – 2SC3807MP

Datasheet Details

Part number 2SC3807MP
Manufacturer Sanyo Semicon Device
File Size 71.31 KB
Description NPN Epitaxial Planar Silicon Transistor
Datasheet download datasheet 2SC3807MP Datasheet
