2SC3841 - Silicon NPN transistor

2SC3841 Description

2SC3841 Rev.E Mar.-2016 DATA SHEET / .
SOT-23 NPN 。Silicon NPN transistor in a SOT-23 Plastic Package.

2SC3841 Applications

* 。 For use as UHF oscillator and a UHF mixer in a turner of a TV receiver. / Equivalent Circuit / Pinning 3 2 1 PIN1：Emitter PIN 2：Base PIN 3：Collector / hFE Classifications & Marking hFE Classifications Symbol hFE Range P 40～80 Q 60～120 Marking HT62 HT63 R 100～200 HT64 http://www. fs

📥 Download Datasheet

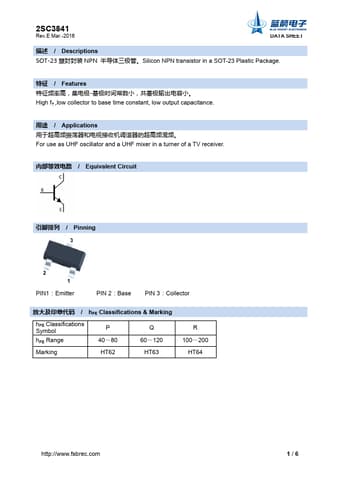

Preview of 2SC3841 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC3841
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
695.67 KB
Datasheet
2SC3841-BLUEROCKETELECTRONICS.pdf
Description
Silicon NPN transistor
