2SC3842 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SC3842

Manufacturer:

SavantIC

File Size:

170.79kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

  • With TO-3PML package
  • High voltage ,high speed
  • High current capability APPLICATIONS
  • For use in TV

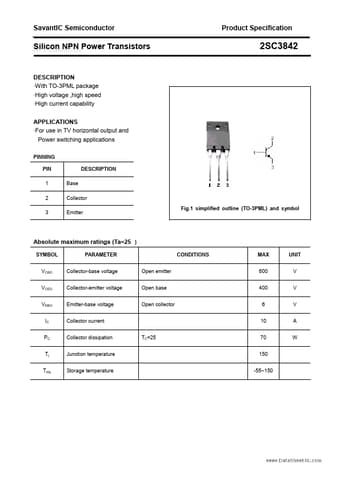

  • Datasheet Preview: 2SC3842 📥 Download PDF (170.79kb)
    Page 2 of 2SC3842 Page 3 of 2SC3842

    2SC3842 Application

    • Applications
    • For use in TV horizontal output and Power switching applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified out
