2SC3843 - NPN Transistor

Product Overview

📥 Download Datasheet

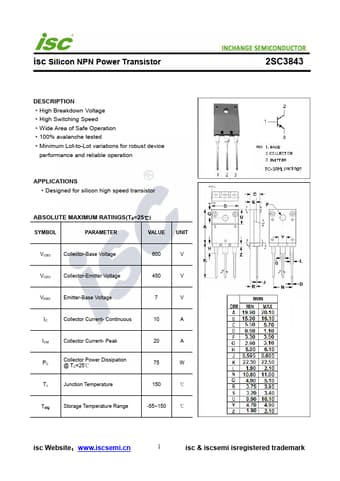

Datasheet preview – 2SC3843

Datasheet Details

Part number 2SC3843
Manufacturer INCHANGE
File Size 175.50 KB
Description NPN Transistor
Datasheet download datasheet 2SC3843 Datasheet
Additional preview pages of the 2SC3843 datasheet.

Product details

Description

High Breakdown Voltage High Switching Speed Wide Area of Safe Operation 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for silicon high speed transistor ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 600 V VCEO Collector-Emitter Voltage 450 V VEBO Emitter-Base Voltage 7 V IC Collector Current- Continuous 10 A ICM Collector
