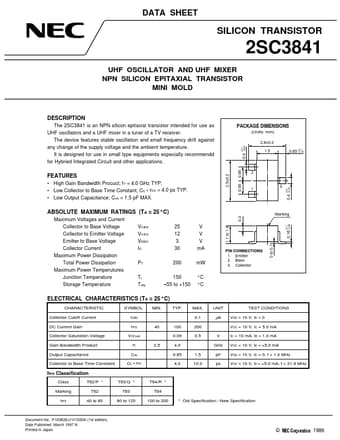

DATA SHEET SHEET DATA
SILICON TRANSISTOR
2SC3841
UHF OSCILLATOR AND UHF MIXER NPN SILICON EPITAXIAL TRANSISTOR MINI MOLD
DESCRIPTION
The 2SC3841 is an NPN silicon epitaxial transistor intended for use as UHF oscillators and a UHF mixer in a tuner of a TV receiver. The device features stable oscillation and small frequency drift against any change of the supply voltage and the ambient temperature. It is designed for use in small type equipments especially recommendd for Hybried Integrated Circuit and other applications.
PACKAGE DIMENSIONS (Units: mm)
2.8±0.2
0.4 −0.05
+0.1
1.5
0.65 −0.15
+0.1
0.95 0.95
FEATURES
• High Gain Bandwidth Procuct; fT = 4.0 GHz TYP. • Low Collector to Base Time Constant; CC rb’b = 4.0 ps TYP. • Low Output Capacitance; Cob = 1.5 pF MAX.
2.9±0.
