2SC3852 Silicon NPN Transistor

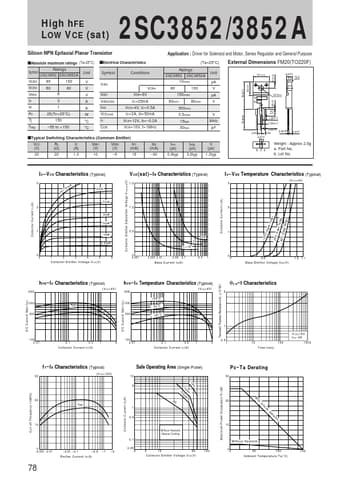

2SC3852/3852A High hFE LOW VCE (sat) Silicon NPN Epitaxial Planar Transistor sAbsolute maximum ratings (Ta=25°C) Ratings Symbol 2SC3852 2SC3852A Unit VCBO 80 100 V VCEO 60 80 V VEBO 6 V IC 3 A IB 1 A PC 25(Tc=25°C) W Tj 150 °C Tstg 55 to +150 °C sElectrical Characteristics Symbol Conditions ICBO IEBO V(BR)CEO hFE VCE(sat) fT COB VCB= VEB=6V IC=25mA VCE=4V, IC=0.5A IC=2A, IB=50mA VCE=12V, IE= 0.2A VCB=10V, f=1MHz sTypical Switching Characteris.
