2SC3841 - Silicon NPN Transistor

2SC3841 Description

isc Silicon NPN RF Transistor INCHANGE Semiconductor 2SC3841 .
High Current-Gain Bandwidth Product: fT = 4 GHz TYP. Low Output Capacitance- COB = 1. Low Base Time Constant: rbb’. C.

2SC3841 Applications

* Designed for use as UHF oscillators and a UHF mixer in a tuner of a TV receiver. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 25 V VCEO Collector-Emitter Voltage 12 V VEBO Emitter-Base Voltage 3 V IC Collector Current-Continuous PC

📥 Download Datasheet

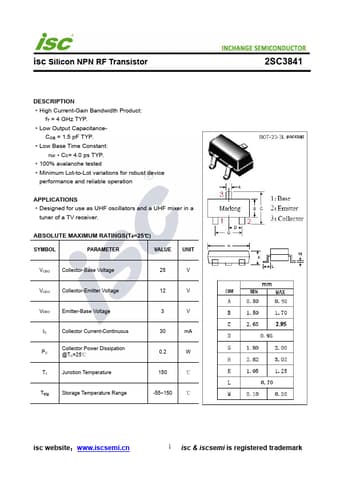

Preview of 2SC3841 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC3841
Manufacturer
Inchange Semiconductor
File Size
185.96 KB
Datasheet
2SC3841-InchangeSemiconductor.pdf
Description
Silicon NPN Transistor
