2SC3862 - Silicon NPN Transistor

2SC3862 Description

isc Silicon NPN RF Transistor INCHANGE Semiconductor 2SC3862 .
High Gain Bandwidth Product fT= 2400 MHz TYP. 100% avalanche tested. Minimum Lot-to-Lot variations for robust device performance and rel.

2SC3862 Applications

* TV tuner, UHF mixer applications.
* VHF~UHF band RF amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 30 V VCEO Collector-Emitter Voltage 15 V VEBO Emitter-Base Voltage 3 V IC Collector Current-Continuous 50 mA

📥 Download Datasheet

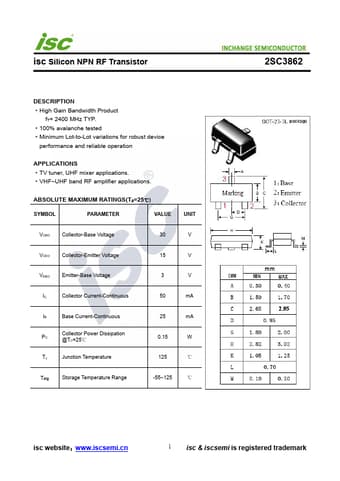

Preview of 2SC3862 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC3862
Manufacturer
Inchange Semiconductor
File Size
180.27 KB
Datasheet
2SC3862-InchangeSemiconductor.pdf
Description
Silicon NPN Transistor
