2SC3834 Silicon NPN Transistor

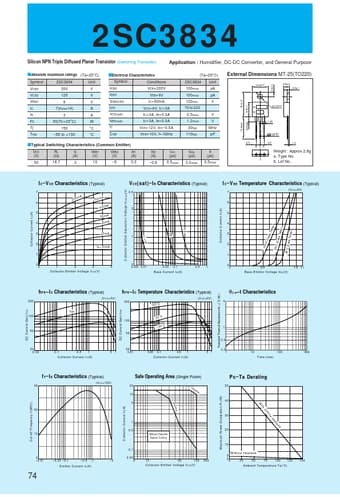

2SC3834 Silicon NPN Triple Diffused Planar Transistor (Switching Transistor) sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SC3834 200 120 8 7(Pulse14) 3 50(Tc=25°C) 150 55 to +150 Unit V V V A A W °C °C Application : Humidifier, DC-DC Converter, and General Purpose (Ta=25°C) 2SC3834 100max 100max 120min 70 to 220 0.5max 1.2max 30typ 110typ V MHz pF 2.5 B C E 12.0min 4.0max sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) VBE(sat) fT COB .

2SC3834 Datasheet (23.04 KB)
