2SC3842 - NPN Transistor

2SC3842 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC3842 .
High Breakdown Voltage. High Switching Speed. Wide Area of Safe Operation. 100% avalanche tested. Minimum Lot-to-Lot variations f.

2SC3842 Applications

* Designed for use in TV horizontal output and power Switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 600 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 6 V IC Collector Current- Continuous 10 A

📥 Download Datasheet

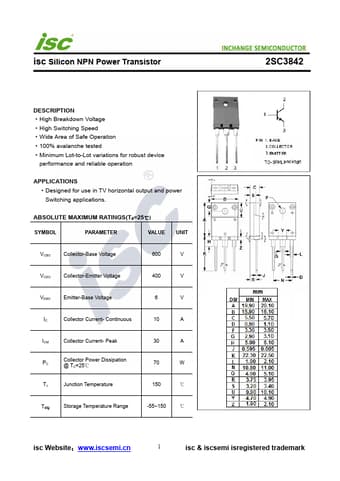

Preview of 2SC3842 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC3842
Manufacturer
INCHANGE
File Size
174.48 KB
Datasheet
2SC3842-INCHANGE.pdf
Description
NPN Transistor
