2SC5368 Datasheet - Toshiba Semiconductor

2SC5368, NPN TRANSISTOR

2SC5368 TOSHIBA Transistor Silicon NPN Triple Diffused Type 2SC5368 High-Voltage Switching Applications Switching Regulator Applications DC-DC Conver.

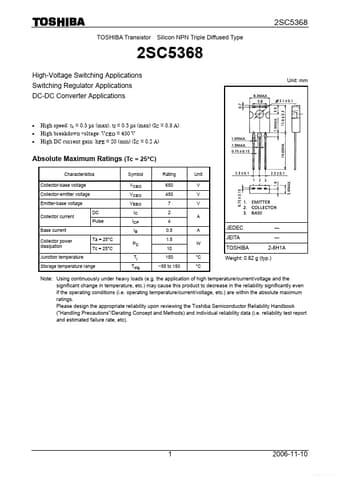

datasheet Preview Page 1 from Datasheet4u.com

2SC5368_ToshibaSemiconductor.pdf

2SC5368 Datasheet Preview — Preview of 2SC5368 PDF

Datasheet Details

Part number:

2SC5368

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

146.51 KB

Description:

NPN TRANSISTOR

Applications

* Switching Regulator Applications DC-DC Converter Applications Unit: mm
* High speed: tr = 0.5 μs (max), tf = 0.3 μs (max) (IC = 0.8 A) High breakdown voltage: VCEO = 450 V High DC current gain: hFE = 20 (min) (IC = 0.2 A) Absolute Maximum Ratings (Tc = 25°C) Characteri
