CUS15I30A Schottky Barrier Rectifier

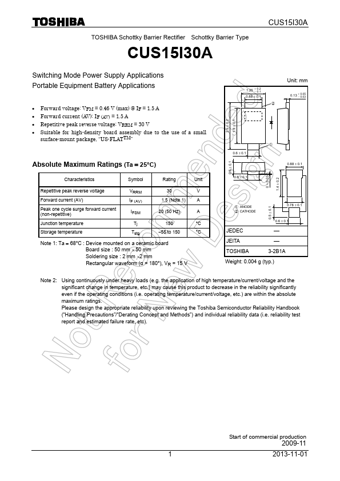

TOSHIBA Schottky Barrier Rectifier Schottky Barrier Type CUS15I30A CUS15I30A Switching Mode Power Supply Applications Portable Equipment Battery Applications Forward voltage: VFM = 0.46 V (max) @ IF = 1.5 A Forward current (AV): IF (AV) = 1.5 A Repetitive peak reverse voltage: VRRM = 30 V Suitable for high-density board assembly due to the use of a small surface-mount package, “US-FLATTM” Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Ra.
