MIG150J7CSB1W Datasheet - Toshiba Semiconductor

MIG150J7CSB1W N-Channel IGBT

MIG150J7CSB1W TOSHIBA Intelligent Power Module Silicon N Channel IGBT MIG150J7CSB1W (600V/150A 7in1) High Power Switching Applications Motor Control Applications Integrates inverter, brake power circuit and control circuits (IGBT drive units, and units for protection against short-circuit current, over-current, under-voltage and over-temperature) into a single package. The electrodes are isolated from the case Low thermal resistance VCE (sat) = 1.9 V (typ.) U.

MIG150J7CSB1W Datasheet (186.02 KB)

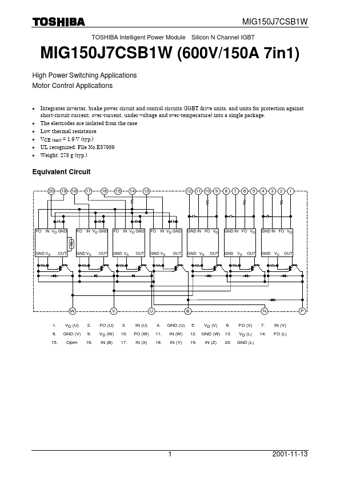

Preview of MIG150J7CSB1W PDF

Datasheet Details

Part number:

MIG150J7CSB1W

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

186.02 KB

Description:

N-channel igbt.
