MIG150Q6CMB1X Datasheet - Toshiba

MIG150Q6CMB1X Silicon N Channel IGBT

MIG150Q6CMB1X TOSHIBA Intelligent Power Module Silicon N Channel IGBT MIG150Q6CMB1X (1200V/150A 6in1) High Power Switching Applications Motor Control Applications Integrates inverter power circuits and control circuits (IGBT drive units, and units for protection against short-circuit current, overcurrent, undervoltage and overtemperature) into a single package. The electrodes are isolated from the case. Low thermal resistance VCE (sat) = 2.4 V (typ.) UL recog.

MIG150Q6CMB1X Datasheet (168.31 KB)

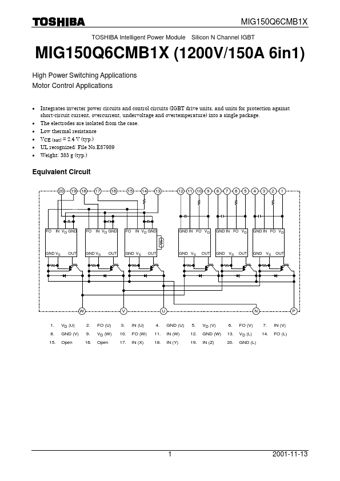

Preview of MIG150Q6CMB1X PDF

Datasheet Details

Part number:

MIG150Q6CMB1X

Manufacturer:

Toshiba ↗

File Size:

168.31 KB

Description:

Silicon n channel igbt.
