S-AU50M Datasheet - Toshiba Semiconductor

S-AU50M TOSHIBA RF POWER AMPLIFIER MODULE

www.DataSheet4U.com S AU50M TOSHIBA RF POWER AMPLIFIER MODULE S AU50M UHF BAND FM POWER AMPLIFIER MODULE HAND-HELD TRANSCEIVER Unit: mm MAXIMUM RATINGS (Tc = 25°C) CHARACTERISTIC DC Supply Voltage DC Supply Voltage Input Power Output Power Total Current Operating Case Temperature Range Storage Temperature Range SYMBOL VDD VGG Pi Po IT Tc (opr) Tstg RATING 17 6 150 12 3 30~100 40~110 UNIT V V mW W A °C °C JEDEC EIAJ TOSHIBA Weight: 3.5g 5.

S-AU50M_ToshibaSemiconductor.pdf

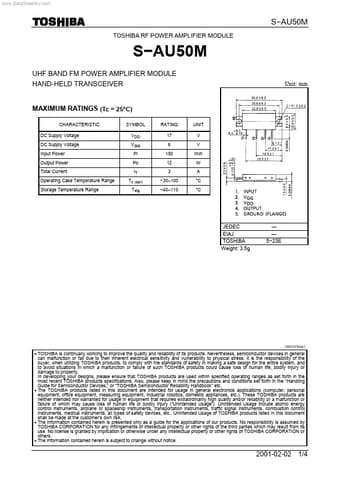

Preview of S-AU50M PDF
S-AU50M Datasheet Preview Page 2 S-AU50M Datasheet Preview Page 3

Datasheet Details

Part number:

S-AU50M

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

158.54 KB

Description:

Toshiba rf power amplifier module.
