SAV-36 FM RF Power Amplifier Module

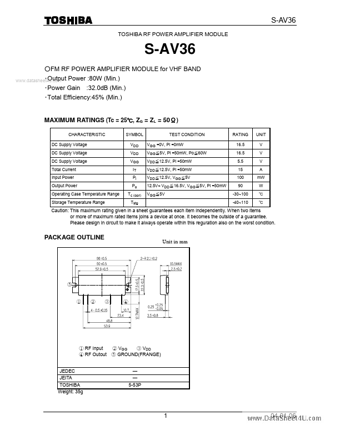

S-AV36 TOSHIBA RF POWER AMPLIFIER MODULE S-AV36 ○FM RF POWER AMPLIFIER MODULE for VHF BAND ･Output Power :80W (Min.) www.datasheet4u.com ･Power Gain :32.0dB (Min.) ･Total Efficiency:45% (Min.) MAXIMUM RATINGS (Tc = 25℃, ZG = ZL = 50Ω) CHARACTERISTIC DC Supply Voltage DC Supply Voltage DC Supply Voltage Total Current Input Power Output Power Operating Case Temperature Range Storage Temperature Range SYMBOL VDD VDD VGG IT Pi Po Tc (opr) Tstg TEST CONDITION VGG =0V, Pi =0mW VGG≦5V, Pi =50mW, Po≦6.
