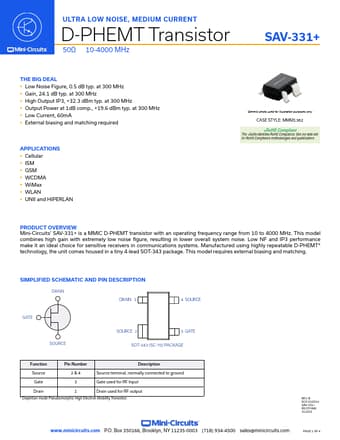

SAV-331+ D-PHEMT Transistor

DRAIN DRAIN 1 4 SOURCE GATE SOURCE SOURCE 2 3 GATE SOT-343 (SC-70) PACKAGE Function Pin Number Description Source 2&4 Source terminal, normally connected to ground Gate 3 Gate used for RF Input Drain 1 Drain used for RF output * Depletion mode Pseudomorphic High Electron Mobi.

ULTRA LOW NOISE, MEDIUM CURRENT D-PHEMT Transistor 50Ω 10-4000 MHz SAV-331+ THE BIG DEAL y Low Noise Figure, 0.5 dB typ. at 300 MHz y Gain, 24.1 dB typ. at 300 MHz y High Output IP3, +32.3 dBm typ. at 300 MHz y Output Power at 1dB comp., +19.6 dBm typ. at 300 MHz y Low Current, 60mA y External biasing and matching required APPLICATIONS y Cellular y ISM y GSM y WCDMA y WiMax y WLAN y UNII and HIPERLAN Generic photo used for illustration purposes only CASE STYLE: MMM1362 +RoHS Compliant The +Su.
