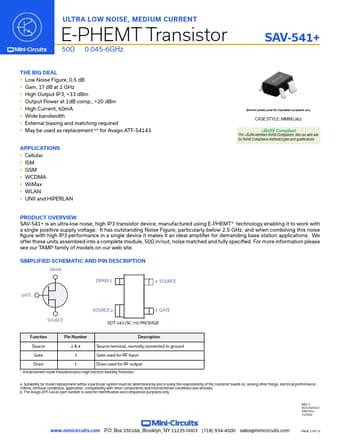

SAV-541+ E-PHEMT Transistor

DRAIN DRAIN 1 4 SOURCE GATE SOURCE SOURCE 2 3 GATE SOT-343 (SC-70) PACKAGE Function Pin Number Description Source 2&4 Source terminal, normally connected to ground Gate 3 Gate used for RF Input Drain 1 Drain used for RF output * Enhancement mode Pseudomorphic High Electron Mob.

ULTRA LOW NOISE, MEDIUM CURRENT E-PHEMT Transistor 50Ω 0.045-6GHz SAV-541+ THE BIG DEAL y Low Noise Figure, 0.5 dB y Gain, 17 dB at 2 GHz y High Output IP3, +33 dBm y Output Power at 1dB comp., +20 dBm y High Current, 60mA y Wide bandwidth y External biasing and matching required y May be used as replacement a,b for Avago ATF-54143 APPLICATIONS y Cellular y ISM y GSM y WCDMA y WiMax y WLAN y UNII and HIPERLAN Generic photo used for illustration purposes only CASE STYLE: MMM1362 +RoHS Complian.
