SAV-581+ E-PHEMT Transistor

SAV-581+ is an ultra-low noise, high IP3 transistor device, manufactured using E-PHEMT * technology enabling it to work with a single positive supply voltage. It has outstanding Noise Figure, particularly below 2.5 GHz, and when combining this noise figure with high IP3 performance in a single de.

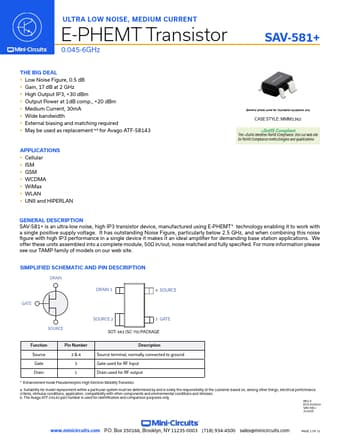

ULTRA LOW NOISE, MEDIUM CURRENT E-PHEMT Transistor 0.045-6GHz SAV-581+ THE BIG DEAL y Low Noise Figure, 0.5 dB y Gain, 17 dB at 2 GHz y High Output IP3, +30 dBm y Output Power at 1dB comp., +20 dBm y Medium Current, 30mA y Wide bandwidth y External biasing and matching required y May be used as replacement a,b for Avago ATF-58143 APPLICATIONS y Cellular y ISM y GSM y WCDMA y WiMax y WLAN y UNII and HIPERLAN Generic photo used for illustration purposes only CASE STYLE: MMM1362 +RoHS Compliant .
