SAV-581, SAV-581-Mini - E-PHEMT

Name: SAV-581
SKU: SAV-581-855282

Mini-Circuits

📥 Download Datasheet

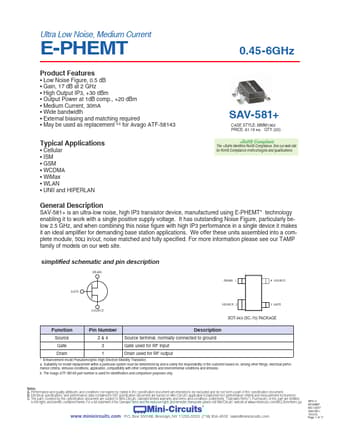

SAV-581 Datasheet Preview — This datasheet PDF includes multiple part numbers: SAV-581, SAV-581-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SAV-581, SAV-581-Mini
Manufacturer	Mini-Circuits
File Size	417.66 KB
Description	E-PHEMT
Datasheet	SAV-581-Mini-Circuits.pdf
Note	This datasheet PDF includes multiple part numbers: SAV-581, SAV-581-Mini. Please refer to the document for exact specifications by model.

SAV-581 Product details

Description

SAV-581+ is an ultra-low noise, high IP3 transistor device, manufactured using E-PHEMT technology enabling it to work with a single positive supply voltage.

Features

Low Noise Figure, 0.5 dB.
Gain, 17 dB at 2 GHz.
High Output IP3, +30 dBm.
Output Power at 1dB comp. , +20 dBm.
Medium Current, 30mA.
Wide bandwidth.
External biasing and matching required.
May be used as replacement a,b for Avago ATF-58143 Typical.
