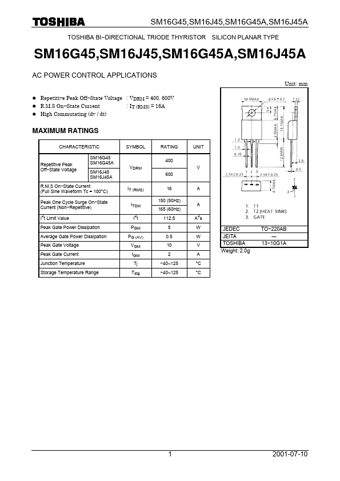

SM16G45,SM16J45,SM16G45A,SM16J45A
TOSHIBA BI−DIRECTIONAL TRIODE THYRISTOR SILICON PLANAR TYPE
SM16G45,SM16J45,SM16G45A,SM16J45A
AC POWER CONTROL APPLICATIONS
Unit: mm l Repetitive Peak Off−State Voltage : VDRM = 400, 600V l R.M.S On−State Current l High Commutating (dv / dt) : IT (RMS) = 16A
MAXIMUM RATINGS
CHARACTERISTIC SM16G45 SM16G45A SM16J45 SM16J45A SYMBOL RATING 400 VDRM 600 IT (RMS) ITSM I t PGM PG (AV) VGM IGM Tj Tstg
2
UNIT
Repetitive Peak Off−State Voltage
V
R.M.S On−State Current (Full Sine Waveform Tc = 100°C) Peak One Cycle Surge On−State Current (Non−Repetitive) I t Limit Value Peak Gate Power Dissipation Average Gate Power Dissipation Peak Gate Voltage Peak Gate Current Junction Temperature Storage Temperature Range
2
16 150 (50Hz) 165 (60Hz) 112.5 5 0.
SM16J45 Datasheet
