TA7712FG, TA7712PG - Full-Wave Brushless DC Motor Controller IC

TA7712FG Description

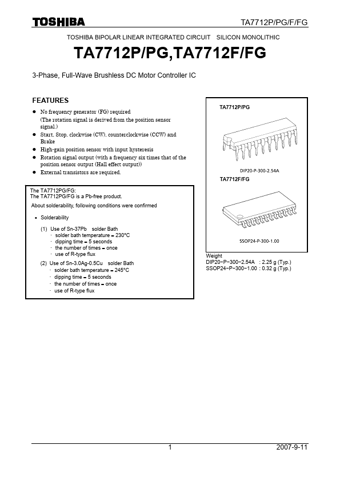

TA7712P/PG/F/FG TOSHIBA BIPOLAR LINEAR INTEGRATED CIRCUIT SILICON MONOLITHIC TA7712P/PG,TA7712F/FG 3-Phase, Full-Wave Brushless DC Motor Controller IC.
PIN No.

TA7712FG Features

* z No frequency generator (FG) required (The rotation signal is derived from the position sensor signal. ) z Start, Stop, clockwise (CW), counterclockwise (CCW) and Brake z High-gain position sensor with input hysteresis z Rotation signal output (with a frequency six times that of the position sensor

TA7712FG Applications

* OF THE TA7712P/PG, TA7712F/FG The TA7712P/PG and TA7712F/FG are provided with a stop function, which enables them to stop the motor having a large inertia like a video disk player in a short time, so that disks can be changed quickly. To eliminate the need of the frequency generator (FG), which was

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TA7712FG, TA7712PG. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TA7712FG, TA7712PG
Manufacturer
Toshiba ↗ Semiconductor
File Size
599.25 KB
Datasheet
TA7712PG-ToshibaSemiconductor.pdf
Description
Full-Wave Brushless DC Motor Controller IC
Note
This datasheet PDF includes multiple part numbers: TA7712FG, TA7712PG.
Please refer to the document for exact specifications by model.
