TA7712P, TA7712F Datasheet - Toshiba Semiconductor

TA7712P 3 PHASE BI-DIRECTIONAL FOR MOTOR CONTROL IC

La+ a *phase upper drive output terminal La * a *phase lower drive output terminal Lb+ b *phase upper drive output terminal Lb * b *phase lower drive output terminal Lc+ c *phase upper drive output terminal Lc * c *phase lower drive out.

TA7712P Features

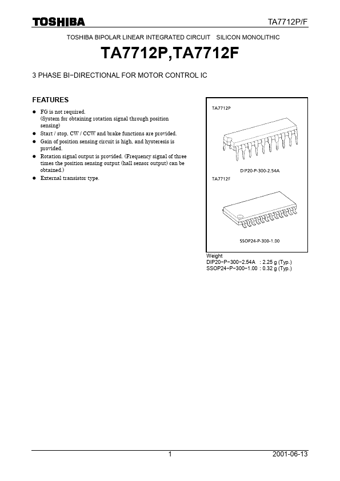

* l FG is not required. (System for obtaining rotation signal through position sensing) l Start / stop, CW / CCW and brake functions are provided. l Gain of position sensing circuit is high, and hysteresis is provided. l Rotation signal output is provided. (Frequency signal of three times the position

TA7712F_ToshibaSemiconductor.pdf

This datasheet PDF includes multiple part numbers: TA7712P, TA7712F. Please refer to the document for exact specifications by model.
TA7712P Datasheet Preview Page 2 TA7712P Datasheet Preview Page 3

Datasheet Details

Part number:

TA7712P, TA7712F

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

270.69 KB

Description:

3 phase bi-directional for motor control ic.

Note:

This datasheet PDF includes multiple part numbers: TA7712P, TA7712F.
Please refer to the document for exact specifications by model.
