TA7812F

Three Terminal Positive Voltage Regulator

TA7812F Datasheet (432.06 KB)

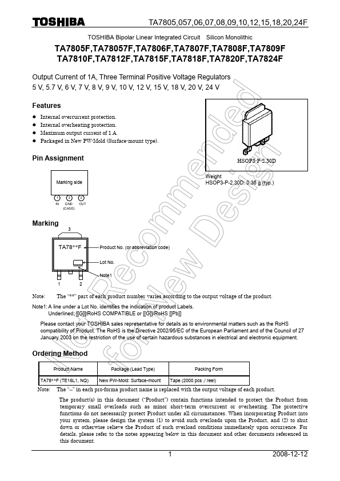

Preview of TA7812F PDF

Datasheet Details

Part number:

TA7812F

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

432.06 KB

Description:

Three terminal positive voltage regulator.
TA7805,057,06,07,08,09,10,12,15,18,20,24F TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA7805F,TA78057F,TA7806F,TA7807F,TA7808F,TA7809.

TA7812F Features

* z Internal overcurrent protection. z Internal overheating protection. z Maximum output current of 1 A. z Packaged in New PW-Mold (Surface-mount type). Pin Assignment Marking side 1 3 2 IN G ND OUT (CAS E) Marking 3 HSOP3-P-2.30D Weight HSOP3-P-2.30D: 0.36 g (typ.) TA78

* F Product No
