TA78DL05AF - (TA78DL05AF - TA78DL15AF) LOW DROPOUT VOLTAGE REGULATOR

Name: TA78DL05AF
SKU: TA78DL05AF-530852

Toshiba Semiconductor

The TA78DL05AF by Toshiba Semiconductor is a (TA78DL05AF - TA78DL15AF) LOW DROPOUT VOLTAGE REGULATOR. Below is the official datasheet preview.

📥 Download Datasheet

TA78DL05AF (TA78DL05AF - TA78DL15AF) LOW DROPOUT VOLTAGE REGULATOR by Toshiba Semiconductor - Datasheet Preview — Official preview page of the **TA78DL05AF** (TA78DL05AF - TA78DL15AF) LOW DROPOUT VOLTAGE REGULATOR datasheet (Toshiba Semiconductor).

Datasheet Details

Part number	TA78DL05AF
Manufacturer	Toshiba Semiconductor
File Size	198.88 KB
Description	(TA78DL05AF - TA78DL15AF) LOW DROPOUT VOLTAGE REGULATOR
Datasheet	TA78DL05AF_ToshibaSemiconductor.pdf

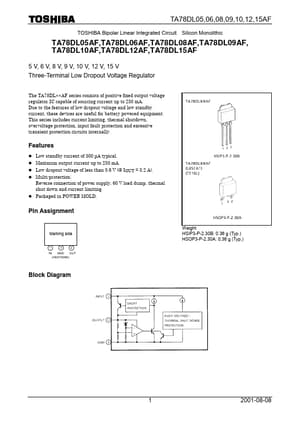

Additional preview pages of the TA78DL05AF datasheet.

TA78DL05AF Product details

Features

of low dropout voltage and low standby current, these devices are useful for battery powered equipment. This series includes current limiting, thermal shutdown, overvoltage protection, input fault protection and excessive transient protection circuits internally. Features l Low standby current of 500 µA typical. l Maximum output current up to 250 mA. l Low dropout voltage of less than 0.6 V (@ IOUT = 0.2 A). l Multi-protection: Reverse connection of power supply, 60 V load dump, thermal shut dow.
