TA78DL05S - (TA78DL05S - TA78DL15S) LOW DROPOUT VOLTAGE REGULATOR

Name: TA78DL05S
SKU: TA78DL05S-530838

Toshiba Semiconductor

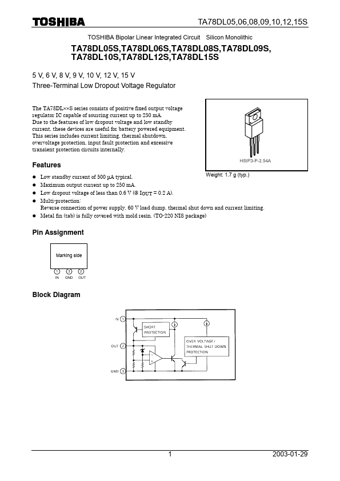

The TA78DL05S by Toshiba Semiconductor is a (TA78DL05S - TA78DL15S) LOW DROPOUT VOLTAGE REGULATOR. Below is the official datasheet preview.

📥 Download Datasheet

TA78DL05S (TA78DL05S - TA78DL15S) LOW DROPOUT VOLTAGE REGULATOR by Toshiba Semiconductor - Datasheet Preview — Official preview page of the **TA78DL05S** (TA78DL05S - TA78DL15S) LOW DROPOUT VOLTAGE REGULATOR datasheet (Toshiba Semiconductor).

Datasheet Details

Part number	TA78DL05S
Manufacturer	Toshiba Semiconductor
File Size	177.36 KB
Description	(TA78DL05S - TA78DL15S) LOW DROPOUT VOLTAGE REGULATOR
Datasheet	TA78DL05S_ToshibaSemiconductor.pdf
Additional preview pages of the TA78DL05S datasheet.

TA78DL05S Product details

Features

of low dropout voltage and low standby current, these devices are useful for battery powered equipment. This series includes current limiting, thermal shutdown, overvoltage protection, input fault protection and excessive transient protection circuits internally. Features l Low standby current of 500 µA typical. Weight: 1.7 g (typ. ) l Maximum output current up to 250 mA. l Low dropout voltage of less than 0.6 V (@ IOUT = 0.2 A). l Multi-protection: Reverse connection of power supply, 60 V.
