TA8168SN - FM FRONT END IC

Datasheet Summary

Features

  • Improved RF inter.
  • modulation characteristics by double balanced type mixer circuit.
  • Low drift oscillation frequency for strong input.
  • It is available TV band frequency (up to 220MHz).
  • Built.
  • in IF amplifier RO = 330Ω (typ. ), Vo (IF) = 70mVrms (typ. ).
  • Emitter output of local oscillation transistor.
  • Built.
  • in varactordiode for AFC Cathode and anode are floating.
  • Operating supply voltage range VCC (opr) = 3.5~14V (Ta = 25°C) Block Diagram W.

📥 Download Datasheet

Datasheet preview – TA8168SN

Datasheet Details

Part number TA8168SN
Manufacturer Toshiba Semiconductor
File Size 753.17 KB
Description FM FRONT END IC
Datasheet download datasheet TA8168SN Datasheet
Additional preview pages of the TA8168SN datasheet.

📁 Similar Datasheet

  • TA8100F - 3V AM/FM IF IC (Toshiba)
  • TA8100N - 3V AM/FM IF IC (Toshiba)
  • TA8102P - Power Driver IC (Toshiba)
  • TA8106F - STEREO HEADPHONE POWER AMPLIFIER (1.5V USE) (Toshiba)
  • TA8108AF - (TA8108A / TA8109A) AM / FM IF System (Toshiba)
  • TA8108AP - (TA8108A / TA8109A) AM / FM IF System (Toshiba)
  • TA8109AF - (TA8108A / TA8109A) AM / FM IF System (Toshiba)
  • TA8109AP - (TA8108A / TA8109A) AM / FM IF System (Toshiba)
  • TA8110A - AM/FM IF (Toshiba)
  • TA8110AF - AM / FM IF System (Toshiba)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text

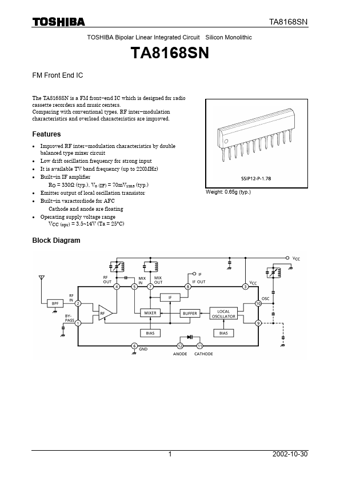

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA8168SN FM Front End IC TA8168SN The TA8168SN is a FM front−end IC which is designed for radio cassette recorders and music centers. Comparing with conventional types, RF inter−modulation characteristics and overload characteristics are improved. Features · Improved RF inter−modulation characteristics by double balanced type mixer circuit · Low drift oscillation frequency for strong input · It is available TV band frequency (up to 220MHz) · Built−in IF amplifier RO = 330Ω (typ.), Vo (IF) = 70mVrms (typ.) · Emitter output of local oscillation transistor · Built−in varactordiode for AFC Cathode and anode are floating · Operating supply voltage range VCC (opr) = 3.5~14V (Ta = 25°C) Block Diagram Weight: 0.65g (typ.
