TB1305FG (TB1305FG / TB1308FG) Sync Separation and H/V Frequency Counter IC

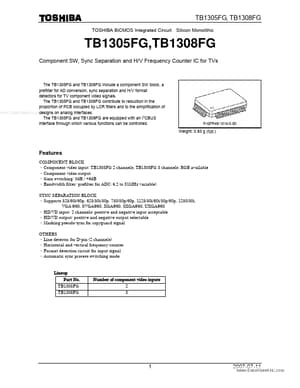

TB1305FG, TB1308FG TOSHIBA BiCMOS Integrated Circuit Silicon Monolithic TB1305FG,TB1308FG Component SW, Sync Separation and H/V Frequency Counter IC for TVs The TB1305FG and TB1308FG include a component SW block, a prefilter for AD conversion, sync separation and H/V format detectors for TV component video signals. The TB1305FG and TB1308FG contribute to reduction in the proportion of PCB occupied by LCR filters and to the simplification of www.DataSheet4U.com designs on analog interfaces. 2 T.

TB1305FG Features

* COMPONENT BLOCK Component video input: TB1305FG 2 channels, TB1308FG 3 channels; RGB available Component video output Gain switching: 0dB / +6dB Bandwidth filter: prefilter for ADC; 4.2 to 31MHz variable) SYNC SEPARATION BLOCK Supports 525/60i/60p, 625/50i/50p, 750/50p/60p, 1125/50i/60i/50p/60p
