TB1328FG Sync Separation and H/V Frequency Counter IC

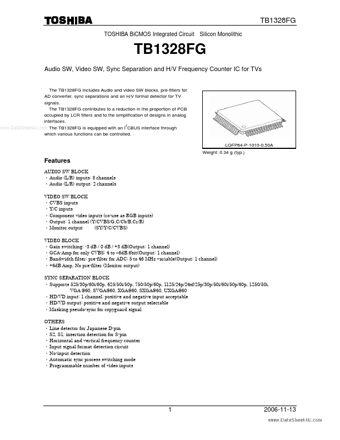

TB1328FG TOSHIBA BiCMOS Integrated Circuit Silicon Monolithic TB1328FG Audio SW, Video SW, Sync Separation and H/V Frequency Counter IC for TVs The TB1328FG includes Audio and video SW blocks, pre-filters for AD converter, sync separations and an H/V format detector for TV signals. The TB1328FG contributes to a reduction in the proportion of PCB occupied by LCR filters and to the simplification of designs in analog interfaces. 2 www.DataSheet4U.com The TB1328FG is equipped with an I CBUS interf.

TB1328FG Features

* AUDIO SW BLOCK Audio (L/R) inputs: 8 channels Audio (L/R) output: 2 channels VIDEO SW BLOCK CVBS inputs Y/C inputs Component video inputs (co-use as RGB inputs) Output: 1 channel (Y/CVBS/G,C/Cb/B,Cr/R) Monitor output (SY/Y/C/CVBS) VIDEO BLOCK Gain switching: -3 dB / 0 dB / +3 dB(Output: 1 ch

TB1328FG_ToshibaSemiconductor.pdf

TB1328FG Datasheet Preview — Preview of TB1328FG PDF

Datasheet Details

Part number:

TB1328FG

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

893.65 KB

Description:

Sync separation and h/v frequency counter ic.
