TC4093BF Datasheet - Toshiba Semiconductor

TC4093BF QUAD 2-INPUT NAND SCHMITT TRIGGERS

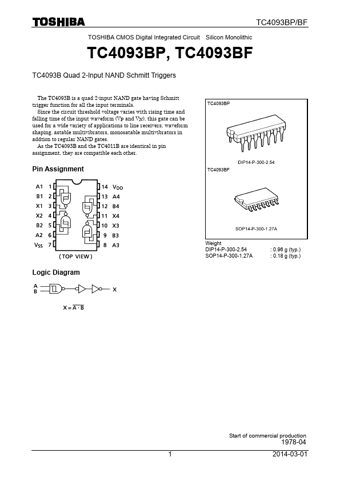

TC4093BP/BF TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC4093BP, TC4093BF TC4093B Quad 2-Input NAND Schmitt Triggers The TC4093B is a quad 2-input NAND gate having Schmitt trigger function for all the input terminals. Since the circuit threshold voltage varies with rising time and falling time of the input waveform (VP and VN), this gate can be used for a wide variety of applications to line receivers, waveform shaping, astable multivibrators, monosatable multivibrators in addti.

TC4093BF Datasheet (169.95 KB)

Preview of TC4093BF PDF
TC4093BF Datasheet Preview Page 2 TC4093BF Datasheet Preview Page 3

Datasheet Details

Part number:

TC4093BF

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

169.95 KB

Description:

Quad 2-input nand schmitt triggers.
