TC4093BP, TC4093BF Datasheet - Toshiba Semiconductor

TC4093BP QUAD 2-INPUT NAND SCHMITT TRIGGERS

TC4093BP/BF TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC4093BP, TC4093BF TC4093B Quad 2-Input NAND Schmitt Triggers The TC4093B is a quad 2-input NAND gate having Schmitt trigger function for all the input terminals. Since the circuit threshold voltage varies with rising time and falling time of the input waveform (VP and VN), this gate can be used for a wide variety of applications to line receivers, waveform shaping, astable multivibrators, monosatable multivibrators in addti.

TC4093BF_ToshibaSemiconductor.pdf

This datasheet PDF includes multiple part numbers: TC4093BP, TC4093BF. Please refer to the document for exact specifications by model.

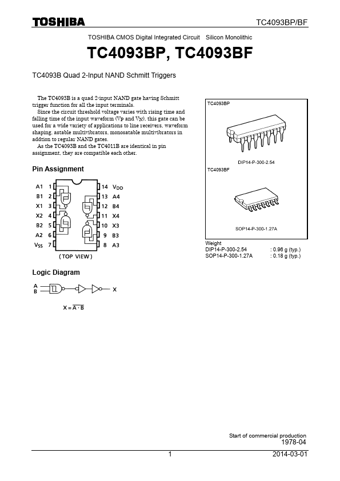

TC4093BP Datasheet Preview Page 2 TC4093BP Datasheet Preview Page 3

Datasheet Details

Part number:

TC4093BP, TC4093BF

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

169.95 KB

Description:

Quad 2-input nand schmitt triggers.

Note:

This datasheet PDF includes multiple part numbers: TC4093BP, TC4093BF.
Please refer to the document for exact specifications by model.
