TC4521BP Datasheet - Toshiba Semiconductor

TC4521BP - 24-Stage Frequency Divider

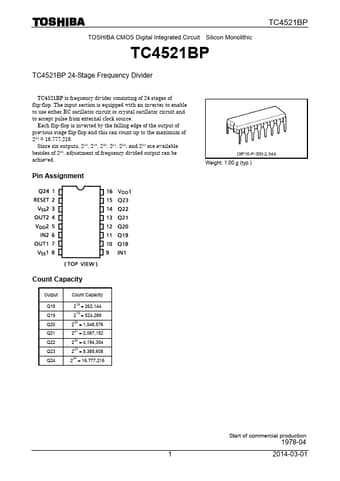

TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC4521BP TC4521BP 24-Stage Frequency Divider TC4521BP TC4521BP is frequency divider consisting of 24 stages of flip-flop.

The input section is equipped with an inverter to enable to use either RC oscillator circuit or crystal oscillator circuit and to accept pulse from external clock source.

Each flip-flop is inverted by the falling edge of the output of previous stage flip-flop and this can count up to the maximum of 224 = 16,777,216.

TC4521BP_ToshibaSemiconductor.pdf

Preview of TC4521BP PDF
TC4521BP Datasheet Preview Page 2 TC4521BP Datasheet Preview Page 3

Datasheet Details

Part number:

TC4521BP

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

221.02 KB

Description:

24-stage frequency divider.
