TC74AC00FN, TC74AC00F, QUAD 2 - INPUT NAND GATE

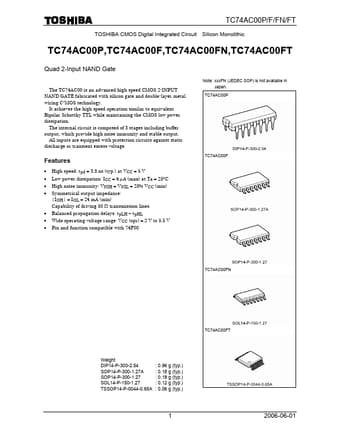

TC74AC00P/F/FN/FT TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74AC00P,TC74AC00F,TC74AC00FN,TC74AC00FT Quad 2-Input NAND Gate The TC7.

TC74AC00F_ToshibaSemiconductor.pdf

TC74AC00FN Datasheet Preview — This datasheet PDF includes multiple part numbers: TC74AC00FN, TC74AC00F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TC74AC00FN, TC74AC00F

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

351.88 KB

Description:

QUAD 2 - INPUT NAND GATE

Note:

This datasheet PDF includes multiple part numbers: TC74AC00FN, TC74AC00F.
Please refer to the document for exact specifications by model.

Features

* High speed: tpd = 3.8 ns (typ. ) at VCC = 5 V
* Low power dissipation: ICC = 4 µA (max) at Ta = 25°C
* High noise immunity: VNIH = VNIL = 28% VCC (min)
* Symmetrical output impedance: |IOH| = IOL = 24 mA (min) Capability of driving 50 Ω transmission lines.
